Description

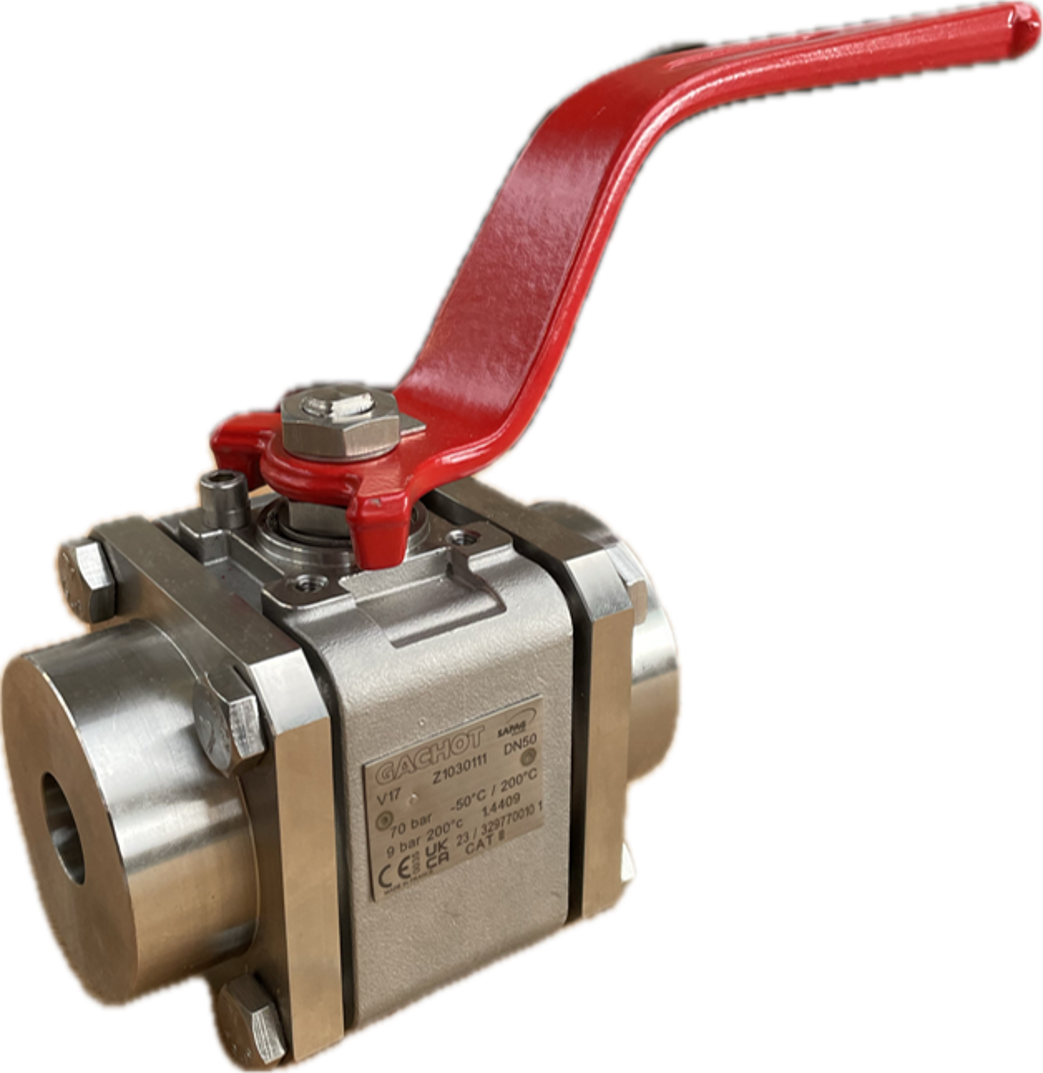

V17 (Gachot®) three-piece ball valve
GENERAL APPLICATIONS:
Industry, Chemical and petrochemical industry, Shipbuilding, Cryogenics
TECHNICAL DATA:
Diameter (DN): 8-150
Pressure: 220 bar max (depending on DN)
Temperatures: -196°C / +350 °C
Reduced / full bore
Carbon steel / stainless steel version (others on request) Leakage rate: EN12266-1 / ISO 5208 - Rate A (no leakage)
CONNECTION TYPES:
Flange/BW/SW/ Threaded / other on request
OPTIONS:

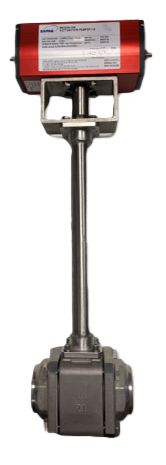

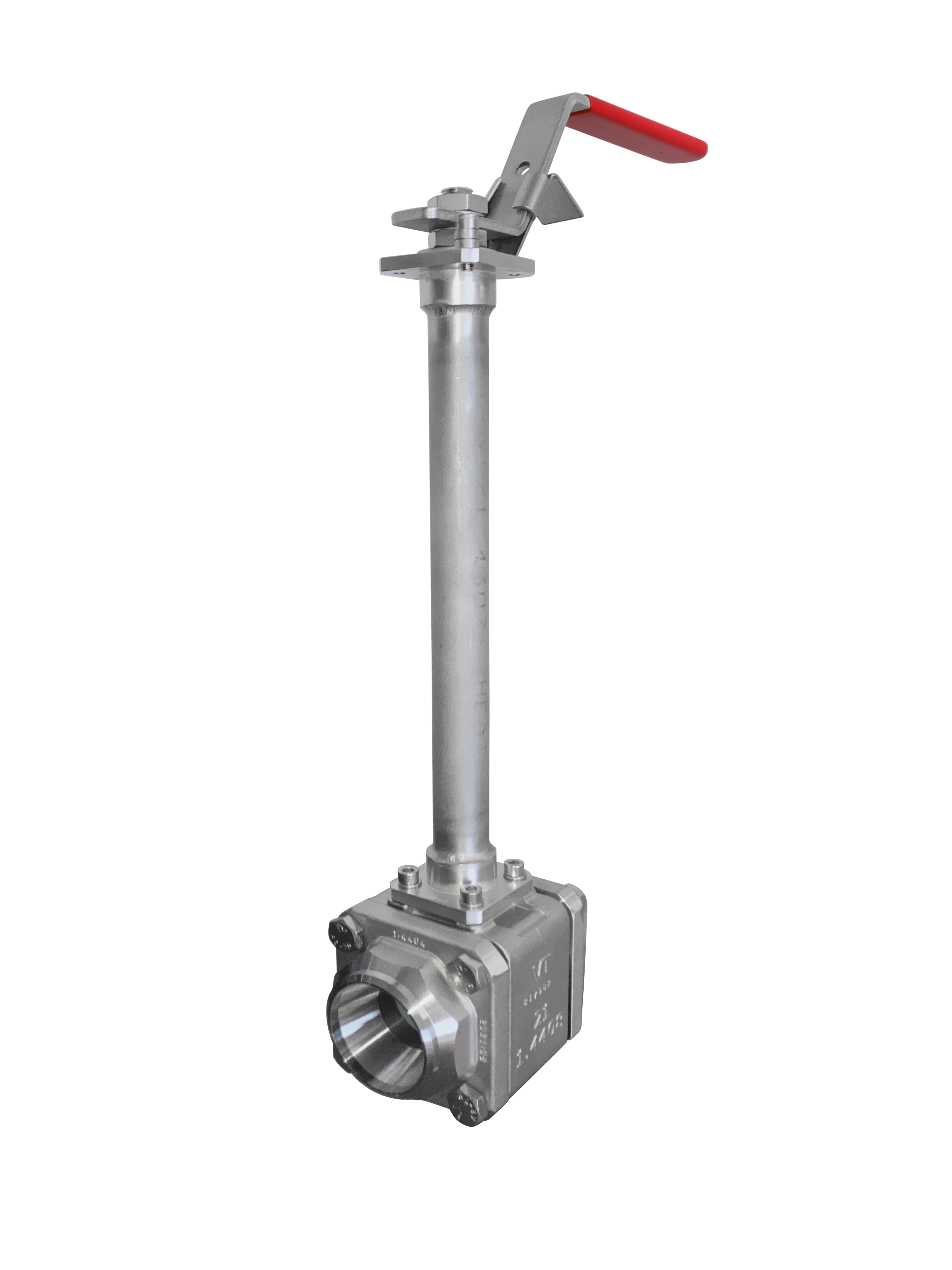

Cryogenic version with 150 and 300 mm extension.
ADVANTAGES:
Face-to-face: EN 12982 / EN 558 Series 1
Integrated decompression system as standard.
Reduced pressure drop thanks to its design (specific finish on request).
Anti-ejection and anti-release system with force recovery
Two lip seats coupled with two body seals guarantee tightness.
